- For roof pitches 20° and over
- Suits Marley Modern, Redland Mini Stonewold, Russell Grampian and Sandtoft Calderdale profiles
- High and low level ventilation

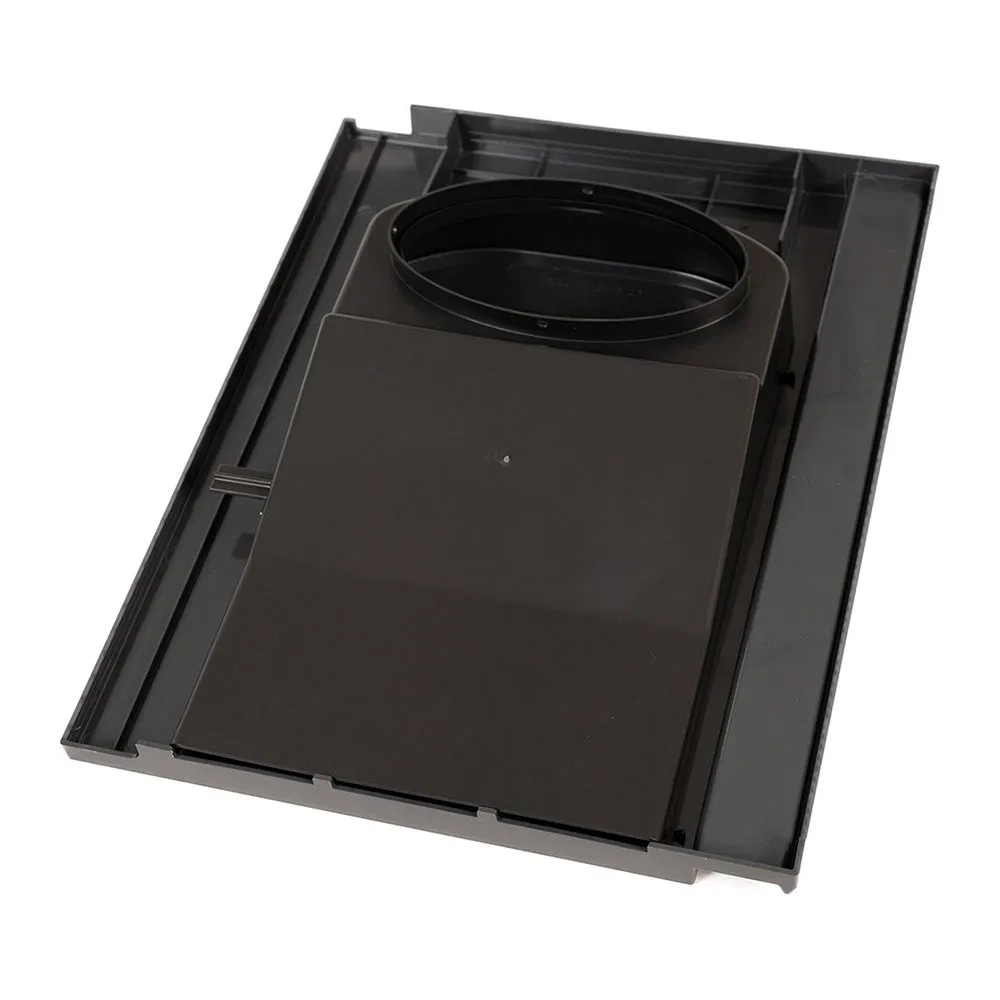

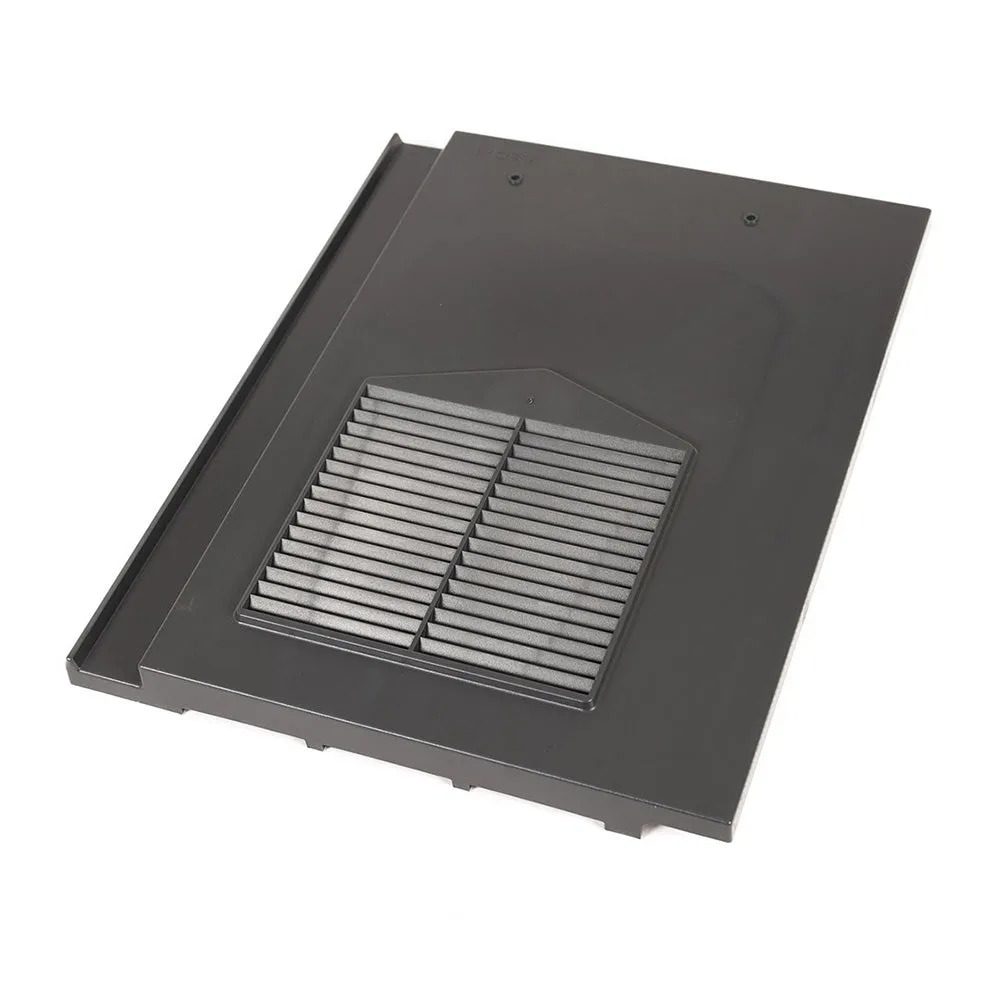

Flat Tile Vents are a cleverly designed in-line range suitable for the most popular concrete interlocking roof tiles, with a minimum pitch of 20°. The built-in downpipe provides a direct ventilation path into the roof space, providing 10,000mm2 of ventilation coverage to help reduce the build-up of mould growth and structural damage, caused by damp, poorly ventilated roofs. While it can also be used as a terminal for soil and ventilation pipes and mechanical extraction systems too when used with an adaptor and Flexipipe. Profile-Line Flat Tile Vents have been specially developed to suit leading tile manufacturers, including Marley Modern, Redland Mini Stonewold, Russell Grampian and Sandtoft Calderdale profiled interlocking tiles. Available in a wide variety of colours to match the roof tiles.
Specs
Colour
Slate Grey
Material
ASA
Minimum Pitch
20
Ventilation Area
10000 mm2
Vent tile spacing 5 000 mm2
2 m
Vent tile spacing 10 000 mm2
1 m
Vent tile spacing 25 000 mm2
0.4 m
Dimensions and Weights
Width
330mm
Length
418mm
Depth
70mm
Instructions
- Determine the position of the tile vent; this must be in line with the tile below
- Mark a 120mm x 180mm wide rectangle and make a star cut from opposite corners
- Fold the four tabs back and upwards and ensure the top tab is secured to the batten above
- Fix the vent tile in position ensuring the fixing clip is located under the left hand interlock of the roof tile
- Continue tiling as normal
