Sometime after the release of the original TB-303, creative users realized that there was more to squeeze out of an already amazing bass machine, to produce sounds that were unique to themselves. As word started spreading about third-party mods adding more functions and many more ways to shape sounds, synth-heads around the world wanted to get their hands on a modded TB-303. Now it’s a lot easier to get that awesome “modded-out” sound with the Behringer TD-3-MO-AM, an ultra-affordable and faithful homage to the iconic synthesizer that’s capable of creating some fiery basslines and much more.

With its pure analogue signal path, 16-step sequencer and authentic VCO, VCF and VCA filters, the TD-3-MO-AM is sure to become one of your favourite synthesizers.

Features:

• “Modded Out” Bass Line synthesizer featuring the most legendary modifications
• Pure analogue signal path based on legendary VCO, VCF and VCA designs
• Sawtooth and square waveform VCO with transistor wave-shaping circuitry
• Amazing 4-pole low-pass resonant filter with cut-off, resonance, envelope, decay and accent controls
• Easy-to-use 16-step sequencer with 7 tracks, each with 250 user patterns
• Filter frequency is fully controllable via MIDI C/C
• Earth-shattering sub-harmonics oscillator with switchable output level
• Authentic analogue slide circuitry with external slide control
• Slide Time control allows for variable slide time (up to 6 times longer)
• Sweep Speed switch features 3 accent speed modes (slow, norm, fast)
• Accent Sweep switch features 3 sweep combinations with high resonance mode
• Filter FM control modulates the frequency of the filter from the audio output of the VCA
• Muffler circuitry features post-VCA distortion with full bass response
• Dedicated Accent push button to manually activate the accent
• Soft Attack control for a wide range of attack times for non-accented notes
• Normal control for a wide range of decay time for non-accented notes
• Accent control fora  wide range of decay time for accented notes
• Filter Tracking control for filter frequency tracking of the current note
• Overdrive control adds insane spice and edge to your sounds
• Massive amount of CV and Gate in/outs for extreme creativity
• 16-voice Poly Chain allows combining multiple synthesizers for up to 16-voice polyphony
• Premium quality VRs featuring high resolution and metal shafts for long lifecycle
• 15 controls and 33 switches to give you direct and real-time access to all important parameters
• MIDI and USB implementation with MIDI channel and Voice Priority selection

Specifications:

• Number of Voices: Monophonic
• Synthesizer Type: Analog
• Oscillators: 1
• VCF: 1 Low Pass
• Envelopes: 1

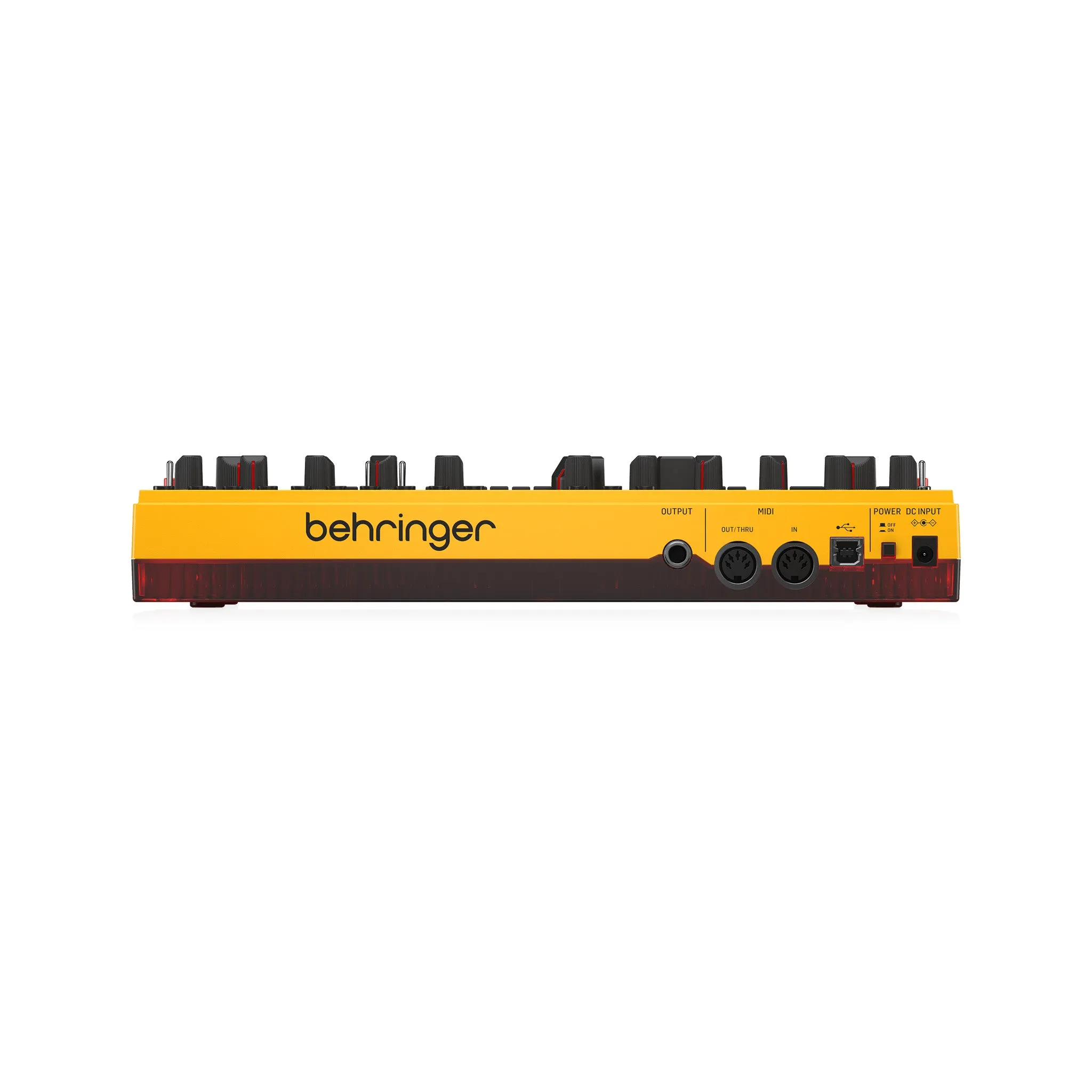

• Connectivity: DC input connector, MIDI In and MIDI Thru, 5-pin DIN, USB 2.0 type B, 1/4" TRS Unbalanced Line Output, 3.5 mm TRS
• Requirements System: Windows 7 or higher, Mac OS X 10.6.8 or higher
• CV Input: -6 V to 6 V (Filter In), 0 V to 12 V (Filter FM in), 0 V to 12 V (Filter CV In), 0 V (Accent In Off), (Accent In On) 12 V, 0 V (Slide In Off), 3.3 V (Slide In On), 0 V (Gate In Off), 3.3 V (Gate In On), 1 V to 5 V (CV In), more than 2.5 V (Sync In)
• CV Outputs: 0 V (Accent Out Off), 6 V (Accent Out On), 0 V (Gate Out Off), 12 (Gate Out On), VCV out: 1 V to 5 V (1 volt/oct), -400 mV to 400 mV (Filter Out)
• Power Supply: 9 VDC 670 mA
• Power Consumption: 4 W max.
• Dimensions: 56 x 305 x 165 mm (2.2 x 12 x 6.5")
• Weight: 0.9 kg (2.0 lbs)
